INDEX - V 300 Y/B
- incl. 24 pos. palett changing system Schnaithmann
- incl. ball screw as spare part
- incl. 39x driven tools
- incl. 39x tool holders
Type: V 300 Y/B

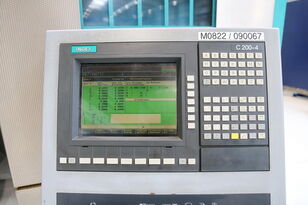

Control: Siemens 840D (Index)
Storage location: D-59302 Oelde
Country of origin: Germany
Delivery time: to be agreed
Quotation: ex site
swing diameter: max. 450 mm
chucking diameter: 400 mm
control: Siemens 840D (Index)
Max. rpm: 4.200 min/-1
power capacity - main spindel: ( 35,5 / 56 ) kW
max. Torque: 40%: 19 Nm
C-Axis: 0,001 °
number of toolpositions: 2x 12 pos
driven statition: 2x 12 pos
worktool system: VDI 30
max. spindle speed driven tools: 6.000 U/min
power capacity - driven tools: 9,5 kW
Y - Axis: +/- 90 mm
b-axis: +270° / -90 °
x-axis: 730 mm
z-axis: 340 mm
y-axis: +/- 90 mm
rapid traverse: X: 40 / Z: 30 m/min
numbers of pallets: 24 pos
size of pallet: 410 x 300 mm
max. workpiecediameter: 300 mm
max. workpiece weight: incl. Pallet: 25 kg
Chain width: 75 mm
band speed: 7,5 m/min
total power requirement: 56 kW
Coolantsystem: 5,3 bar
Three Jaw Chuck: Schunk Rota NCD 400-165
Turret: 2x 12 pos
exhaust fan: IFS - IFE 2000, 0,75 kW
pallets: 24x
live tool holders: 39x
tool holders: 39x
